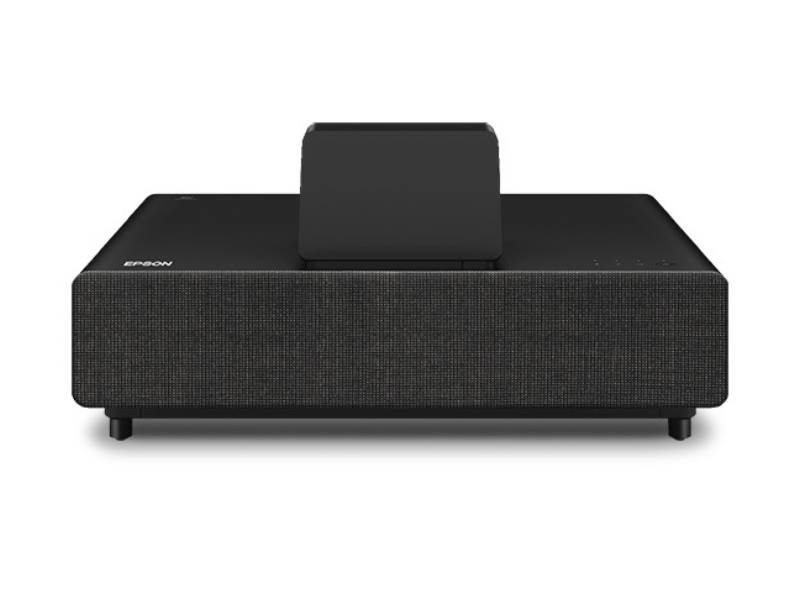

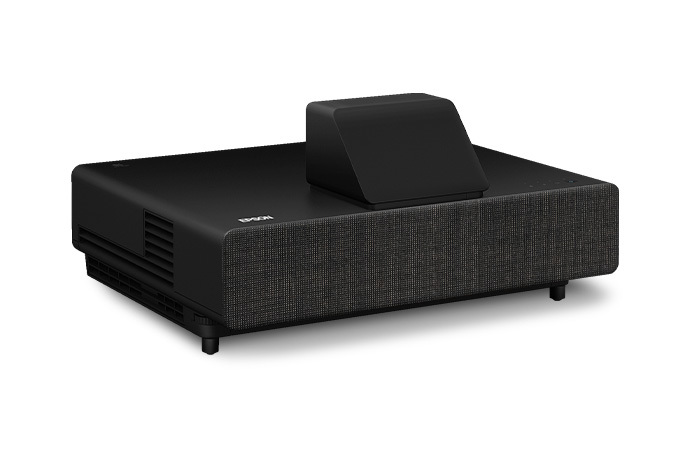

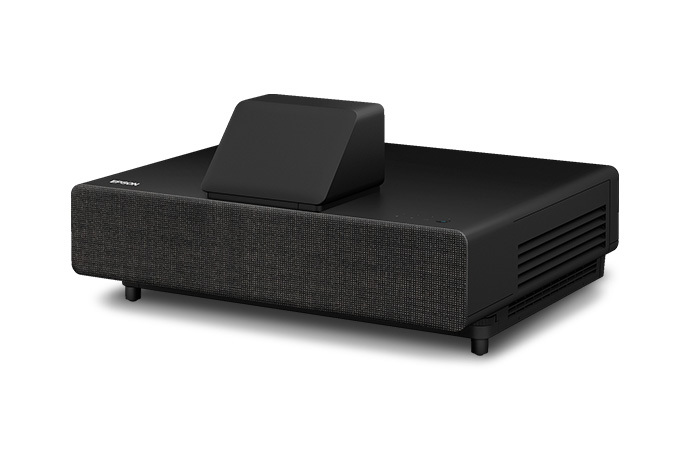

Epson EpiqVision Ultra LS500 4K PRO-UHD Laser Projection TV - LS500BATV120EP
| $7,799.99 |
With an immersive 4K HDR3 viewing experience, the Epson EpiqVision Ultra LS500 Laser Projection TV1 represents a new generation of digital projection that redefines the everyday television experience by offering a stunning 120" picture.
Equipped with proprietary 4K PRO-UHD®2 3LCD technology, the Epson EpiqVision Ultra LS500 Laser Projection TV1 combines an advanced, ultra-short throw laser-array projector — along with a high resolution, ambient-light-rejecting screen — to produce vivid colours and deep blacks for an exceptionally bright, colourful and sharp picture in virtually any viewing environment.
Whether you’re watching a live sporting event, streaming your favorite series, gaming on the latest generation of consoles, or watching a blockbuster movie, the Epson EpiqVision Ultra LS500 Laser Projection TV1 will simply amaze you.
- Immersive 120" Display
- Ultra-Short Throw Laser-Array Technology
- 4K PRO-UHD2 Projection Technology
- Incredibly Bright Picture
- 10-bit HDR3 Colour Processing
A Complete Solution
Epson EpiqVision Ultra LS500 Laser Projection TV1 includes an ultra-short-throw laser projector with an ultra-high-resolution, ambient-light-rejecting screen for an exceptionally bright, colorful and sharp picture
Ultra-Short Throw Laser-Array Technology
A new type of laser projection that produces a stunning 120" display, while being just inches from the wall itself. No complex wiring or ceiling mount required.
Beautiful 120" ALR Screen
High-resolution ambient-light-rejecting screen produces an amazing wide-angle viewing experience with virtually zero glare.
4K PRO-UHD2 Projection Technology
Advanced processing for resolution enhancement, colour and image processing, resulting in an exceptionally sharp picture
Incredibly Bright Picture
Displays 4K HDR3 content at an exceptional level of brightness of 4000 lumens in colour; for all-day viewing in virtually any lighting environment
Advanced HDR Processing
10-bit HDR3 processing accepting 100 percent of the source information to faithfully reproduce HDR content for an exceptional visual performance
Outstanding Colour Accuracy — advanced 3-chip 3LCD technology capable of displaying the Rec.709 colour space4
Dynamic Contrast Ratio Exceeding 2,000,000:1 — advanced black density control individually pulses the laser light to precisely suppress stray light within the signal for incredible deep blacks
Digital Picture Processing — real-time 12-bit analog-to-digital video processing for smooth tonal transitions; eliminates banding, blocking and other compression artifacts
Latest 18 Gbps HDMI 2.0 with ARC Support — fully compatible with virtually all colour formats, depths and spaces; including most 4K HDR3 content at a full 60 Hz
Powered by Android TV™ — included Android TV operating system with a simple-to-use remote – including voice search with built-in Google Assistant™; stream live TV with popular apps
Eco Features
- Recyclable product5
- RoHS compliant
| PROJECTOR | |
|---|---|
| Maximum Resolution | 4096 x 2160 |
| Driving Method | Poly-silicon TFT Active Matrix |
| Projector Color | Black or White |
| Screen Size | 120-inch 16:9 |
| Screen Type | Ceiling Light-rejecting Thin-bezel Fixed Frame |
| Projection Method | Tabletop Front Facing |
| Smart TV Operating System | Included Android TV |
| Projection System | True 3-chip (3LCD) Ultra Short-throw |
| Supported Resolutions | 3840 x 2160, Full HD 1080p/i, HD 720p, 576p/i, 480p/i |
| Native Aspect Ratio | 16:9 widescreen (4:3 resize, 16:10 and 1.9:1 resize) |
| Pixel Arrangement | Cross Stripe |
| Liquid Crystal Type | Vertical Alignment |
| Micro Lens Array | Yes |
| Focus Control | Precision Analog Slider |
| Output Refresh Rate | Up to 60 Hz |
| Color Brightness | Color Light Output: 4,000 lumens |
| White Brightness4 | White Light Output: 4,000 lumens |
| Dynamic Contrast Ratio | Over 2,000,000:1 (Color Mode: Dynamic; Consumption: Normal; Zoom: Wide) |
| Maximum Color Gamut5 | Rec.709 |
| Chroma Subsampling | 4:2:2 (4K 60 fps HDR10), 4:4:4 (4K 30 fps HDR10), 4:4:4 (4K 60 fps no HDR) |
| Color Reproduction | Full 10-bit (up to 1.07 billion colors) |
| Throw Ratio Range | 0.28 (Zoom: Wide), 0.38 (Zoom: Tele) |
| Size (Projected Distance from Lens) | 120" (lens to screen 29.6"; front to screen 35.2"; back to screen; 20.4") |
| Keystone Correction | Vertical: ±3 degrees | Horizontal: ±3 degrees |
| High Dynamic Range | HLG and Full 10-bit HDR |
| Real-time HDR Curve Adjustment | Yes – 16 Steps |
| Digital Color Processing | Real-time 12-bit Analog-to-digital |
| Light Source | Laser diode |
| Dynamic Laser Life | Up to 20,000 hours (Power Consumption: Normal, Quiet) |
| Projection Lens | |
| Type | Manual focus |
| F-number | 1.5 |
| Focal Length | 3.9 mm |
| Zoom Ratio | 1.0 – 1.35 Digital Zoom |
| Other Features | |
| Built-in Audio | Front-firing 10 W Stereo Speakers |
| Instant ON/OFF | Yes |
| 3D Compatibility | Yes – Using Active RF 3D Glasses |
| Computer Compatibility | PC, Mac® |
| Operating Temperature | 41 ° to 95 °F (5 ° to 30 °C) (20% – 80% humidity, no condensation) |
| Power Supply Voltage | 100 – 240 VAC ± 10%, 50/60 Hz |
| Power Consumption | ECO Mode: 236 W ; Normal Mode: 381 W ; Networked Standby: 2.0 W ; Energy Saving: 0.5 W |
| Fan Noise | Quiet Mode: 23 dB ; Normal Mode: 36 dB |

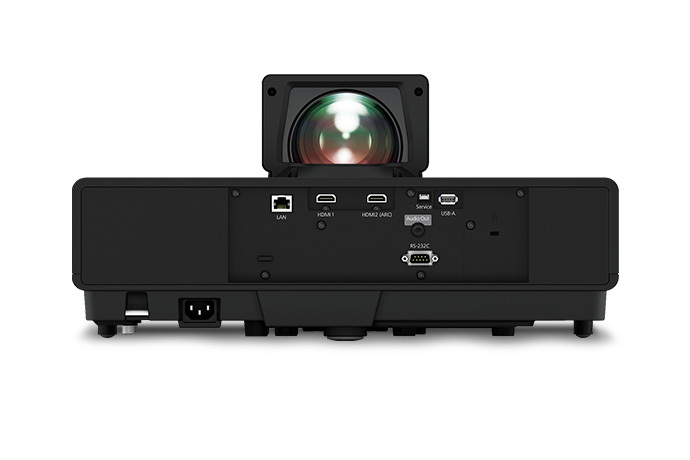

| Interfaces | |
| Audio Out | 1x (Stereo mini) |
| HDMI® | 3x 2.0 (18 Gbps)/HDCP 2.2 (1 ARC, one in front used by Android TV dongle) |
| RS-232C | 1x |
| USB Type A | 2x (one in front used by Android TV dongle) |
| LAN (RJ-45) | 1x |
| Dimensions - Projector (W x D x H) | |
| Excluding Feet | 18" x 14.7" x 8.2" |
| Including Feet | 18" x 14.7" x 9.0" |
| Weight | 20.5 lb |
| Remote Control | |
| Infrared Receiver Features | Front and rear directional |
| Operating Distance | Front/Rear: 19.7' (6 m) |
| Operating Angle | Rear: Left/Right: +/- 55 degrees , Upper/Lower: +75 degrees to +15 degrees , Front: Left/Right: +/- 30 degrees , Upper/Lower: 0 degrees to +60 degrees |
| Specifications – Screen | |
| Gain | 0.6 |
| Viewing angle | 170º |
| Throw ratio | <0.3 |
| Ambient light rejection | yes |
| Dimensions - Screen (D x W x H) | |
| Projection area 120" screen (W x H) | 104.6" x 58.8" |
| Overall 120" screen (D x W x H) | 1.2" x 105.4" x 59.7" |
| Weight 120" screen: | 28.7 lbs |
