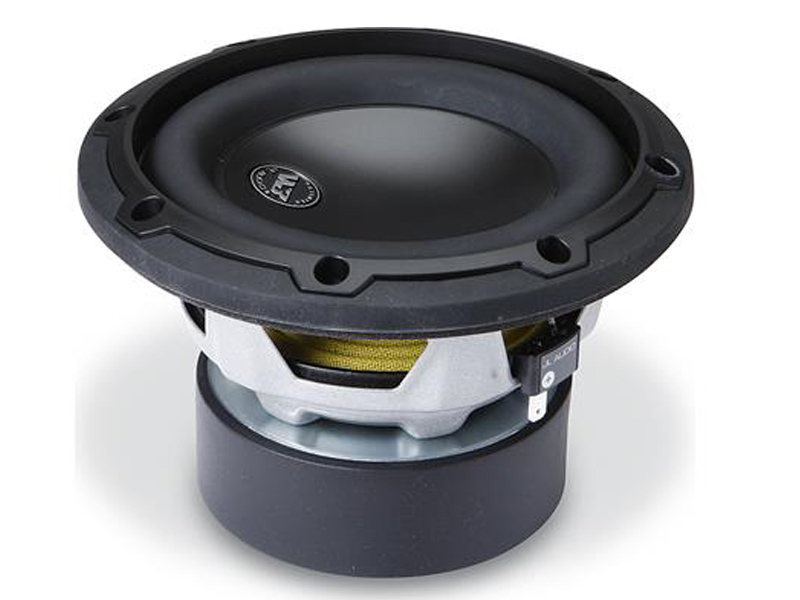

JL Audio 6.5-inch (165 mm) Subwoofer Driver, 4 Ω 6W3v3-4
Model #:6W3v3-4 , UPC #:699440921459
| $429.95 |
W3v3 6.5-inch Subwoofer Driver (150 W, 4 Ω)
If you need a small-format subwoofer that really delivers in extremely small enclosures, this is where your search ends. The 6W3v3 is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.
The 6W3v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a tiny 0.15 cu. ft. (4.2 l) sealed enclosure, or a 0.25 cu. ft. (7.1 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
| Specification | |
|---|---|
| Continuous Power Handling (RMS) | 150 W |
| Recommended Amplifier Power (RMS) | 50 - 150 W |
| Nominal Impedance (Znom) | 4 Ω |
| Parameters | |
| Free Air Resonance (Fs) | 41.80 Hz |
| Electrical “Q” (Qes) | 0.533 |
| Mechanical “Q” (Qms) | 11.027 |
| Total Speaker “Q” (Qts) | 0.508 |
| Equivalent Compliance (Vas) | 0.181 cu ft / 5.13 L |
| One-Way Linear Excursion (Xmax)* | 0.35 in / 8.89 mm |
| Reference Efficiency (no) | 0.07% |
| Efficiency (1 W / 1 m)** | 80.49 dB SPL |
| Effective Piston Area (Sd) | 17.36 sq in / 0.0112 sq m |
| DC Resistance (Re) | 3.476 Ω |
