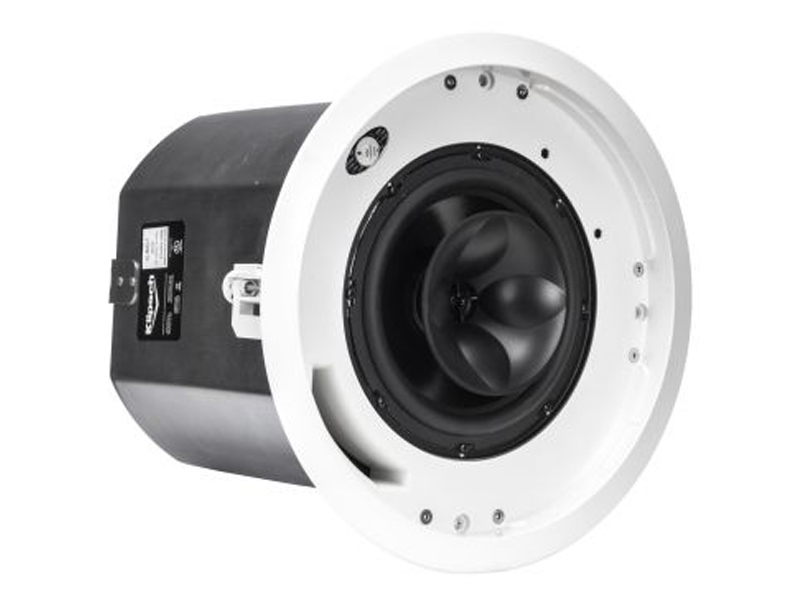

Klipsch In-Ceiling Loudspeaker IC800TW
Model #:IC800TW , UPC #:743878029826
$649.00 / Each |
IC800TW
$649.00
IC-800-T
The IC-800-T packs proven materials and Tractrix® horn technology into a high performance, install friendly, UL-2043 & 1480 certified loudspeaker with an integrated backcan. For distributed applications, the IC-800-T features a 70/100 volt, 100 watt, multi-tap transformer. A single rotary switch for the 8-ohm bypass and multi-tap settings is conveniently located under the speaker grille.
- Tight 75 degree coverage pattern for high ceiling applications
- 100 watt, low insertion loss, multitap transformer for high output and less compression
- 70-volt, 100-volt or low impedance operation selectable via a front baffle switch
- Tractrix port design for deep bass with improved linear response
- Excellent low-frequency performance for applications where low-frequency bass extension is required
- Designed to mix & match with Klipsch CA-T speakers
Specifications | |
---|---|
FREQUENCY RESPONSE | 1 (+/- 4 dB) 49 Hz - 20 kHz |
POWER HANDLING2 | 100 watts (22V), 400 watts peak |
MAXIMUM SPL | 3 111 dB Continuous, 117 dB Peak |
SENSITIVITY | 4 92 dB |
COVERAGE ANGLE | 75º |
DIRECTIVITY INDEX (DI) | 8 dB |
DIRECTIVITY FACTOR (Q) | 6.3 |
NOMINAL IMPEDANCE (IN 8 OHM BYPASS MODE) | 6.5 ohms, 4.2 ohm minimum |
COMPONENTS | One 8" (20.32cm) woofer, 1” (2.54cm) Titanium diaphragm, compression driver |
INPUT CONNECTION | Terminal Strip |
TAP SETTINGS | 70V: 100w, 50w, 25w, 12.5w, 100V: 100w, 50w, 25w |
ENCLOSURE TYPE | Bass-reflex via Tractrix port |
SAFETY AGENCY RATING | UL-1480, UL-2043 |
WIRE GAUGE ACCOMMODATED | 14 AWG |
CUTOUT DIMENSIONS | 12.625” (32.1cm) diameter |
MOUNTING DEPTH | 12.75” (32.4cm) |
OVERALL DEPTH | 13.125” (33.3cm) |
OVERALL WIDTH | 14.15” (35.9cm) diameter |
THRU HOLE WIDTH | 12.5” (31.75cm) |
WEIGHT | 21 lbs. (9.5kg) |
FINISHES | White/Paintable |
ACCESSORIES | Mud Ring Kit (PN: 061347) |
