Morel Elate Carbon Series 6-1/2" Woofers - MOELA-CRBN-MW6
WAS $1,849.95 |
$1,749.95 / Pair |

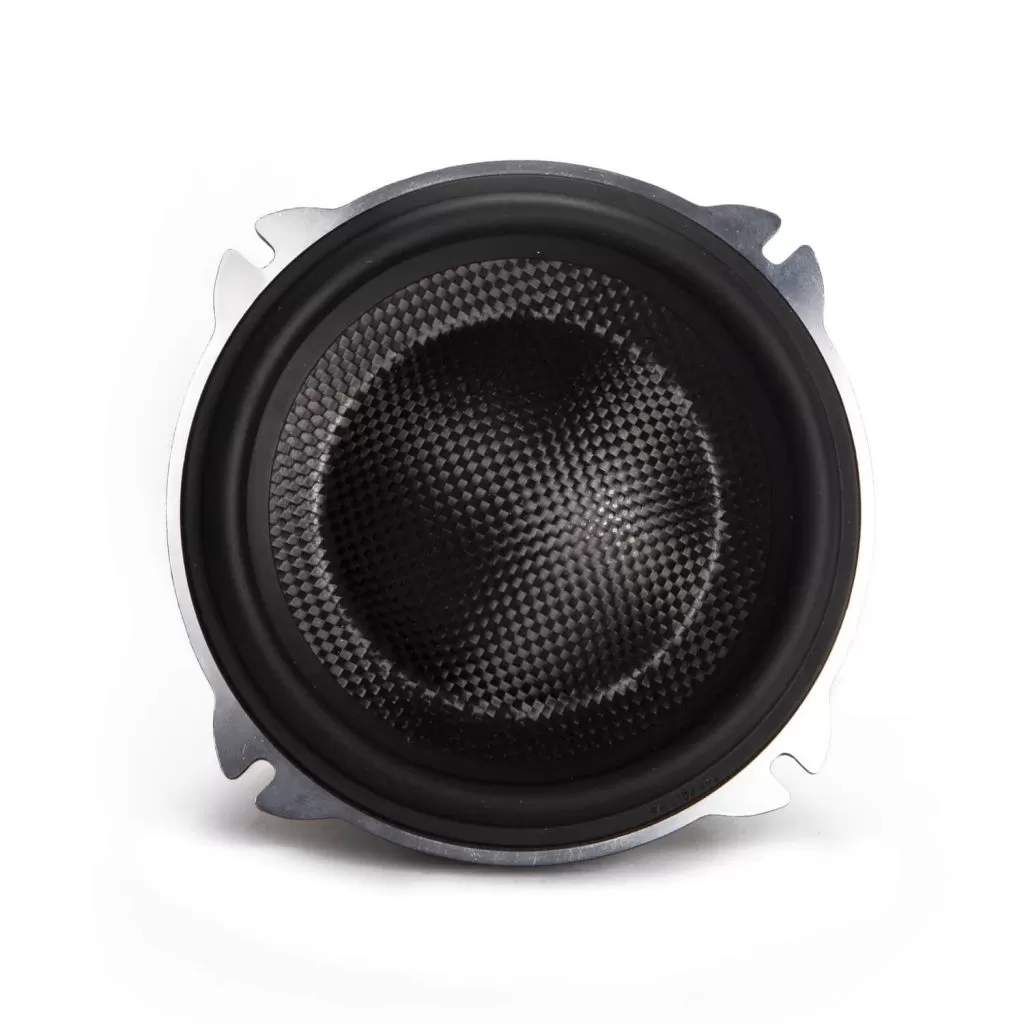

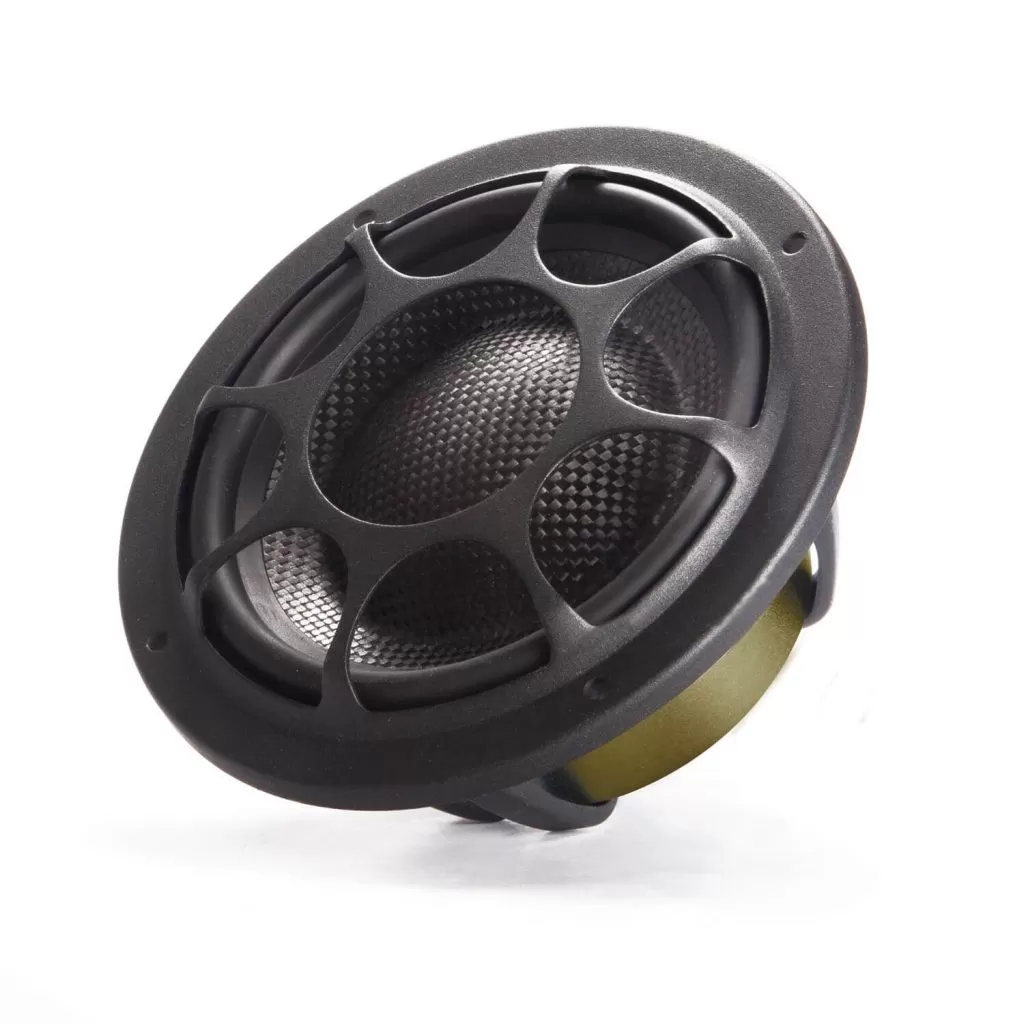

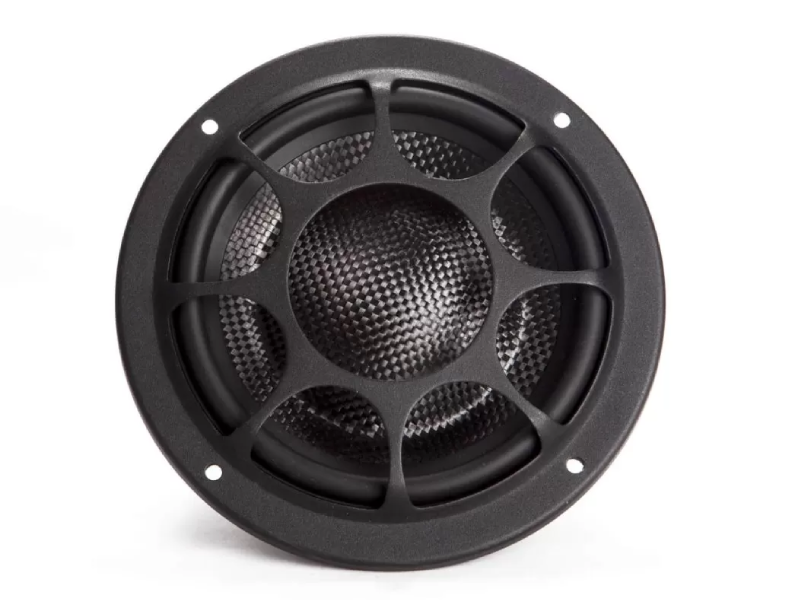

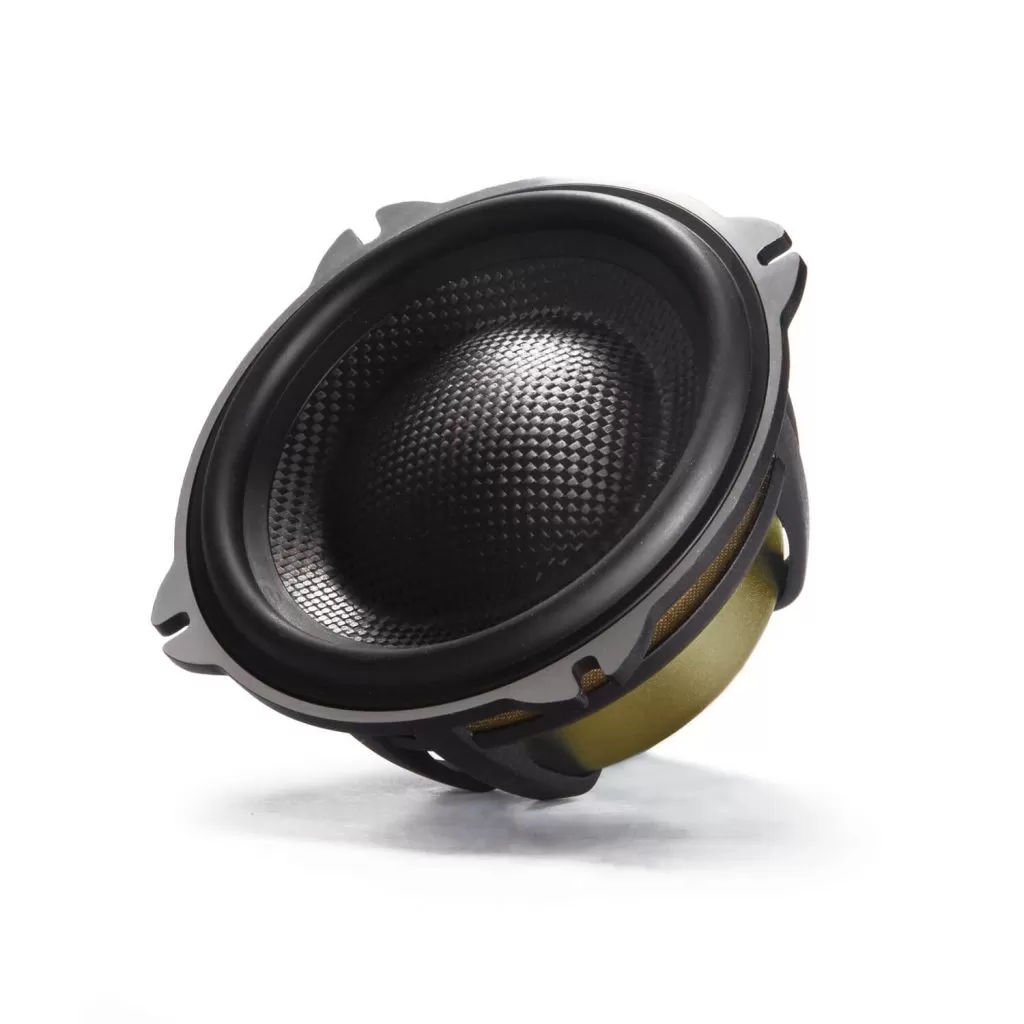

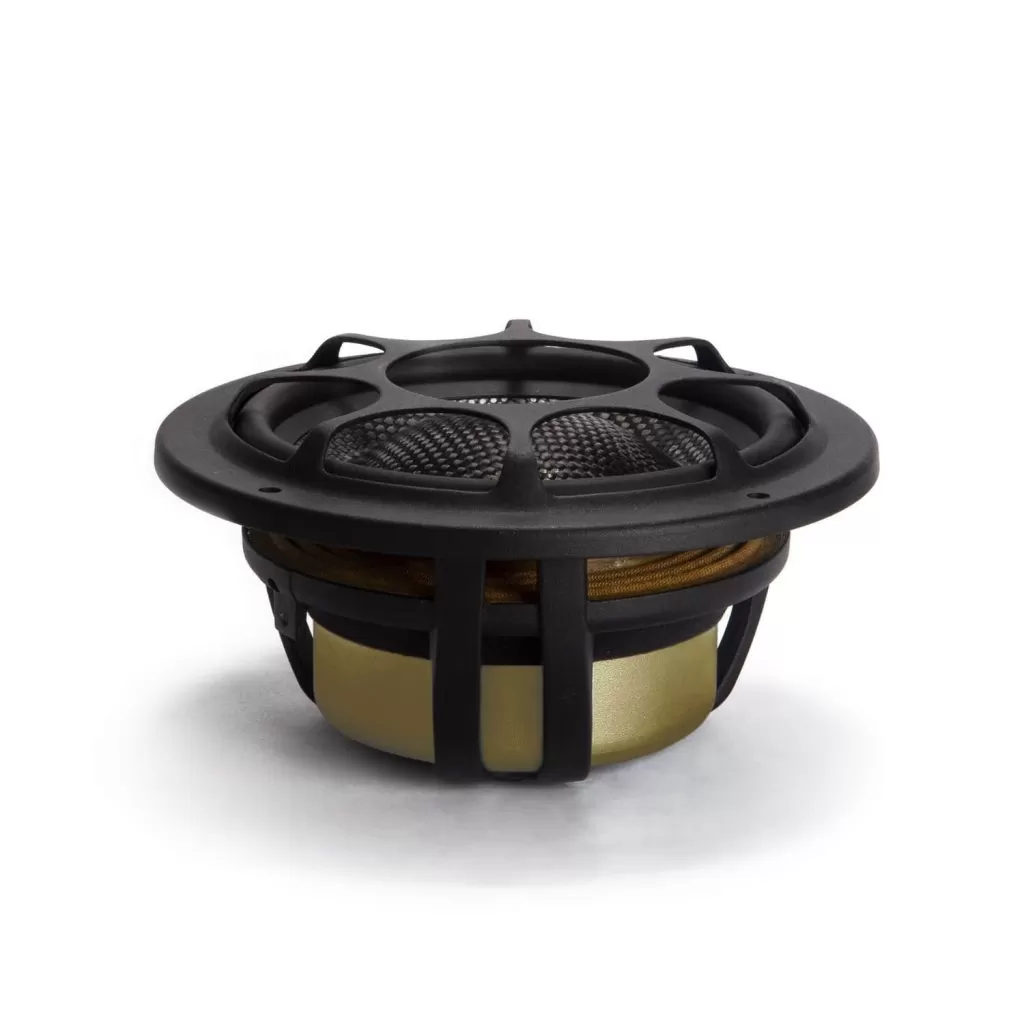

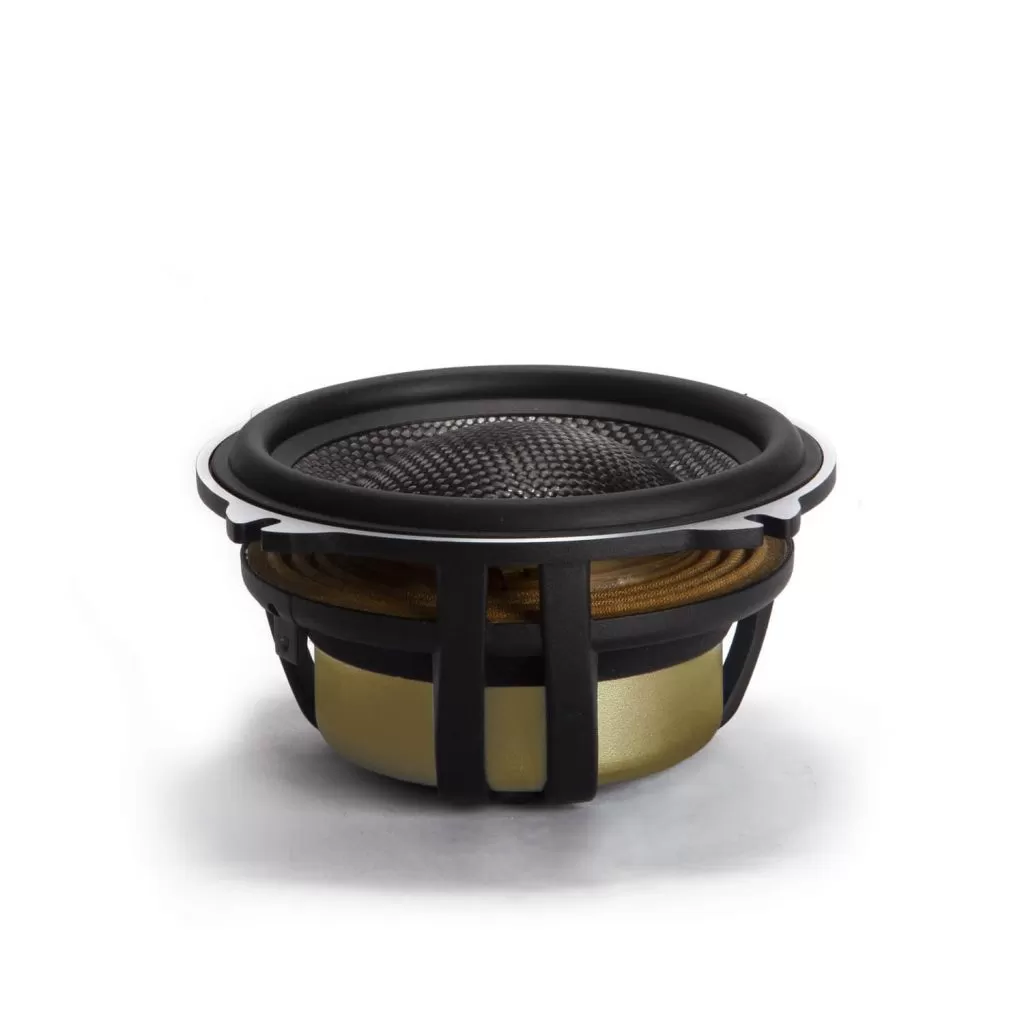

Not all drivers are created equal, and the visually inspiring Elate Carbon woofers were developed with next-level performance in mind. These new drivers get their Carbon moniker from their triple-layer cones from which they are derived, consisting of two layers of carbon fiber sandwiching a Rohacell foam core. These proprietary cones were developed to give them incredible stiffness, high damping and light weight—the trifecta for cone performance.
Paired with a large 3-inch diameter Hexatech aluminum voice coil, titanium former, and Morel’s EVC motor technology, the Elate Carbon achieves remarkable control and low distortion which translates to highly transparent and bass-rich sound reproduction.
CARBON FIBER CONE
Derived from the drivers of our award-winning fat lady speaker system, this cone design is comprised of two exterior carbon fiber skins sandwiching a layer of Rohacell, a high strength, featherweight foam. The combination forms a cone that is light, strong and properly damped for naturally uncolored audio reproduction.
EVC MOTOR
Morel speakers with EVC™ technology utilize voice coils that are up to three times larger than those used in conventional loudspeakers, enabling improved heat dissipation, power handling and linearity. The EVC™ design moves the magnetic motor system to within the voice coil, eliminating stray magnetic flux by effectively directing all the magnetic energy to the voice coil. The EVC architecture is over 90% more efficient than conventional design, magnetically shielded, and highly compact.
HEXATECH™ ALUMINIUM VOICE COIL
Made from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps in the coil windings, thereby increasing efficiency by up to 20%. Being lightweight, Hexatech™ voice coils are largely responsible for the extraordinary fast transient response Morel drive units are known for.
Specifications | |
---|---|
Sensitivity (2.83 V/1M) dB | 87 |
Nominal Impendance (ohm) 4 | 4 |
Resonant Freq. Fs Hz | 45 |
Frequency response Hz | 30 - 4000 |
Max. Linear Ex./Xmax mm (inch) | ±4.75mm (0.18) |
BL Product/BXL | 6.15 |
B-Flux Density (T) | 0.75 |
HE-Magnetic Gap Height mm (inch) | 5 (0.20) |
Magnet System | Double magnet rear vented |
Voice Coil Induct. @1 kHz (mH) | 0.615 |
DC Resistance (ohm) | 3.6 |
Voice Coil Wire | HexatechTM Aluminium |
Voice Coil Type/Former | Titanium |
Voice Coil Height mm (inch) | 14.50 (0.57) |
Voice Coil Diameter mm (inch) | 75 (3) |
Mounting Cutout | 141 (5.55) |
Mounting Depth mm (inch) | 61 (2.40) |
Unit Diameter mm(inch) | 165 (6.50) |
Cone Material | DPC |
Cone Type | One-piece formed |
Effective Piston Area SD sq.cm (sq.inch) | 120 (18.6) |
Equiv. Can Air Load VAS - L (cu.ft3) | 13.3 (0.47) |
Moving Mass MMS - gr/ounce | 18 (0.63) |
Mech. Resistance RMS- N . S / M | 1 |
QMS | 7.19 |
QTS | 0.43 |
Electrical Q Factor QES | 0.47 |
Suspension Compliance CMS - mm/N | 0.67 |
Net Wight Kg (lb) | 1.18 (2.60) |
Max. Trans. Pwr Handling Wrms | 1000 |
Power Handling Wrms | 180 |
