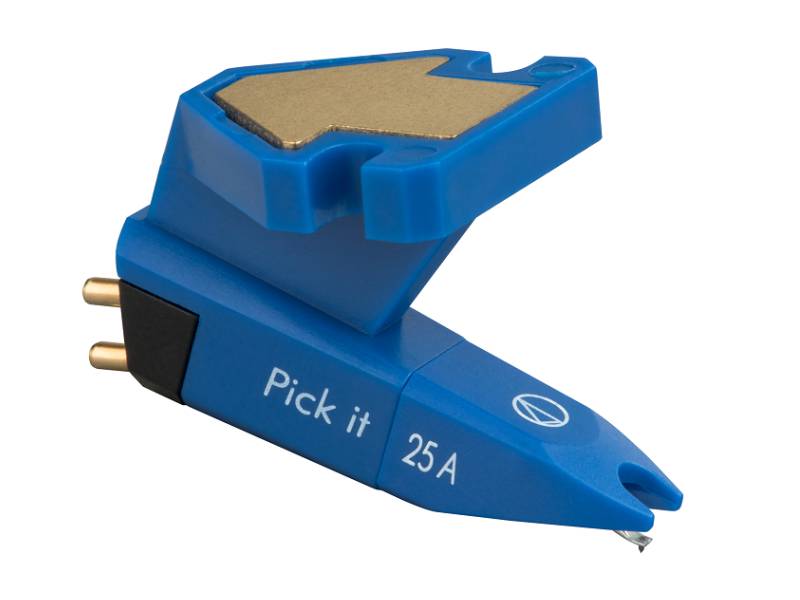

Project Audio Phono Cartridge for Turntable - PROJECT25A
Model #:PROJECT25A , UPC #:9120082384643
$119.99 |
Audiophile vinyl enjoyment because pure silver offers crystal clear performance!
In celebration of our 25th anniversary we release this superior cartridge in cooperation with audiophile phonographic pioneer Ortofon! To realize higher levels of detail, we modified the entry level classic OM 10 with pure silver coils, this also opened up the transparency of this cartridge.
Available in Black and Blue.
Features
- Moving Magnet principle
- Coil windings made from pure silver to achieve higher quality and more dynamic playback compared with conventional MM cartridges
- Suitable for low to medium tonearm masses
- 1/2 inch mounting standard
- High trackability
- Pick it 25A should be connected to phono MM inputs
- As with most MM cartridges, stylus can be exchanged
Specifications | |
---|---|
Weight | 5 g |
Stylus type | elliptical |
Recommended load capacitance | 200-600 pF |
Recommended load resistance | 47 kΩ |
Internal inductance | 580 mH |
Tracking angle | 20° |
Recommended tracking force | 1.5 g |
Tracking force range | 1.25-1.75 g |
Compliance dynamic/lateral | 25 µm/mN |
Channel separation | >25dB @ 1kHz |
Output voltage | 5.5 mV |
Frequency response | 20 - 24.000 Hz |
Stylus tip radius | 8 x 18 µm |
